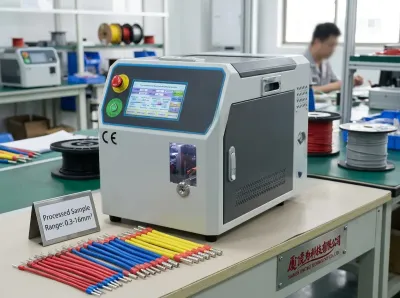

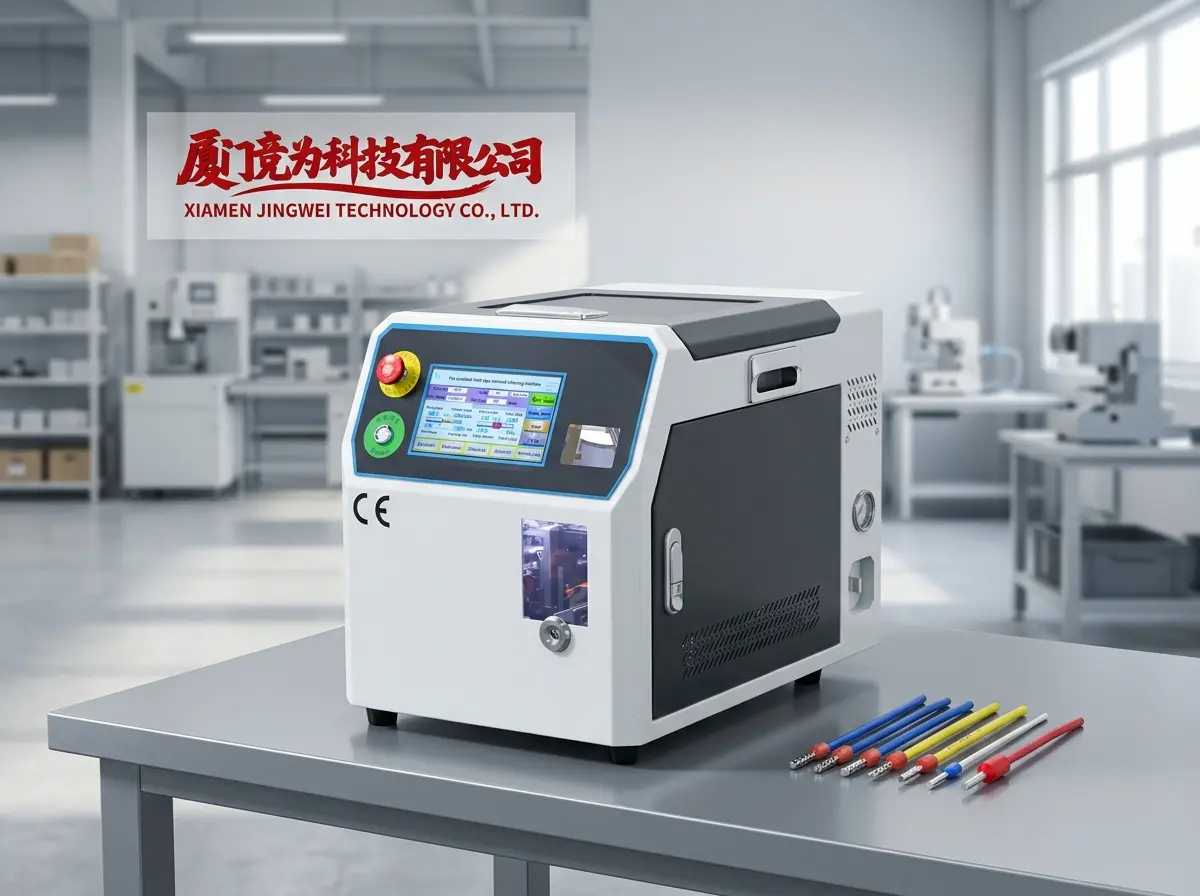

Automatic Ferrule Stripping and Crimping Machine with Twisting Function JW-0.3-16MM2

Name: Automatic Ferrule Stripping and Crimping Machine with Twi...
Brand: Twist-Tie-Machines.com
SKU: JW-0.3-16MM2
Availability: InStock
Rating: 5 (1 reviews)

The JW-0.3-16MM2 is a highly efficient wire stripping, twisting, and pre-insulated terminal crimping machine designed for wire processing applications. It is specifically suitable for crimping a variety of loose tubular terminals onto cables. This compact machine allows for safe, fully sealed operation and combines multiple processes—stripping, twisting, and crimping—at one time to save labor and significantly reduce product processing costs.

Key Features:

● Twisting Function: Added twisting capabilities help prevent loose conductors during the crimping process.

● Universal Tooling: Features a built-in four-sided mold that eliminates the need to change crimping dies for different sized terminals (for wires less than 4.0 mm²).

● Smart Control: Equipped with an LCD touch screen display that automatically adjusts the stripping depth, stripping length, and crimping height.

● Vibratory Feeding System: Utilizes a vibrating plate feeding mechanism for fast, convenient, and effortless terminal replacement.

● Wide Application: Optimal for processing PVC, Teflon, silica gel, and glass fiber lines. It is widely used across the electronics, electrical appliance, motor, lamp, and toy industries.

Product Parameters

Parameter	Specification
Model	JW-0.3-16MM2
Control Mode	Human-machine interface, electronic control, pneumatic control
Wire Size	0.3-16mm² (<0.5mm², need samples to customize and test)
Tube Size	Insulator length <11mm, conductor length <20mm
Stripping Length	6-30mm
Production Capacity	3.2s / wire
Air Supply	0.5-0.6Mpa
Power Source	AC220V / 110V / 50 / 60HZ
Weight	62KG
Dimensions	W360mm × L520mm × H425mm

What wire sizes and types can the JW-0.3-16MM2 handle?

The JW-0.3-16MM2 automatic ferrule stripping and crimping machine processes wire sizes from 0.3 to 16 mm². For wires under 0.5 mm², samples are required for customization and testing. It is compatible with PVC, Teflon, silica gel, and glass fiber lines, making it versatile for electronics, appliances, motors, lamps, and toys.

How does the twisting function improve wire processing?

The twisting function on the JW-0.3-16MM2 twists wire conductors after stripping, preventing loose strands during the crimping process. This ensures secure and reliable connections, reducing defects and improving overall product quality in applications like pre-insulated terminal crimping.

Does the machine require manual die changes for different terminal sizes?

No, the JW-0.3-16MM2 features a built-in four-sided mold that eliminates manual die changes for terminals on wires less than 4.0 mm². This universal tooling saves time and labor, allowing for quick switching between different loose tubular terminal sizes without stopping production.

What is the production capacity and setup requirements?

The machine processes each wire in approximately 3.2 seconds, delivering high efficiency for batch production. It requires an air supply of 0.5-0.6 Mpa and a power source of AC220V or 110V at 50/60 Hz. The compact dimensions (W360mm × L520mm × H425mm) and 62 kg weight make it suitable for workshop integration.

How does the LCD touch screen simplify operation?

The LCD touch screen provides a human-machine interface that automatically adjusts stripping depth, stripping length, and crimping height based on wire parameters. This smart control reduces setup time and operator error, enhancing consistency for wire stripping and crimping tasks with the vibratory feeding system.
