Name: Automatic Coaxial Cable Cutting and Stripping Machine WPM-9935
Brand: JINGWEI
SKU: WPM-9935
Price: 1000.00 USD
Availability: InStock
Rating: 4.8 (89 reviews)

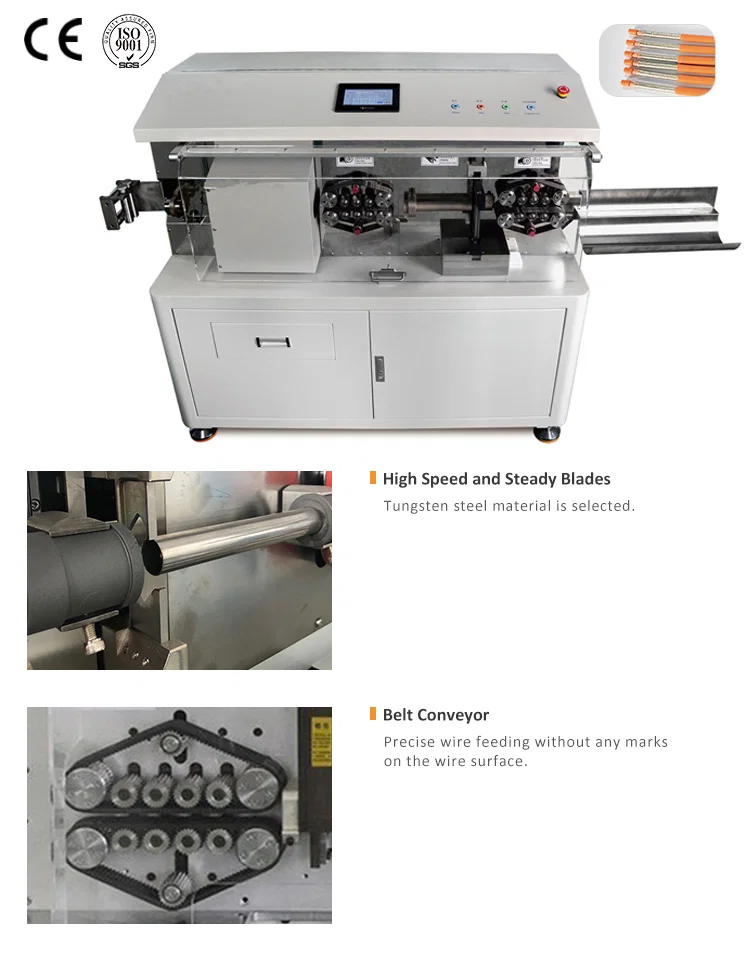

Automatic Coaxial Cable Cutting and Stripping Machine WPM-9935

Automatic Coaxial Cable Cutting and Stripping Machine WPM-9935
Model No: WPM-9935
The coaxial cable cutting and stripping machines, cable stripping machines, coaxial cable stripping machines, and general stripping machine are all suitable for various types of new energy cables.
Wire Diameter：3-32mm
Cut length: 1mm-10m/1mm-50m（Can customize）
Cutting Depth： 0.01mm
Working Efficiency：350-750pcs/h (depends on wire material)
Max. Stripping Capacity：Left End：200mm Right End：250mm
Max. Stripping Layer： Six Layers
Drive mode:Motor, ball screw drive
Dimensions：1430*750*1300mm
Weight：320kg
Power Supply：AC220V 50 60HZ Power Rating：1200W
Blade: 4Pcs，high-speed steel
Inquiry now

Detailed description

Automatic Coaxial cable cutting stripping machine WPM-9935
Cable Stripping Machine, Coaxial Cable Stripping Machine, Stripping MachineThe coaxial cable cutting and stripping machines, cable stripping machines, coaxial cable stripping machines, and general stripping machine are all suitable for various types of new energy cables.
Product features and parameters:
Features:
1. Suitable for different types of New energy cables, and coaxial wires processing among communication and RF industry.
2. Advanced rotating cutter coordinating with V-shaped stripping blades, makes the processing more precise and efficient.
3. Integrated functions including Wire Cutting, Multiple Section Stripping, Middle Stripping, Half-stripping, stripping length adjustable, etc.
4.100 sets memory capacity, all of the processing data can be stored integrally and available for use when needed.
5. Silicone high-temperature wire, high elastic wire, precision medical wire, and the upmarket auto-wire that ordinary wire stripping machines are unable to process are both perfectly available via our machine, with absolutely no harm to the conductor.
Main Parameters:
Wire Diameter：3-32mm
Cut length: 1mm-10m/1mm-50m（Can customize）
Cutting Depth： 0.01mm
Working Efficiency：350-750pcs/h (depends on wire material)
Max. Stripping Capacity： Left End：200mm Right End：250mm
Max. Stripping Layer： Six Layers
Drive mode: Motor, ball screw drive
Dimensions：1430*750*1300mm
Weight：320kg
Power Supply： AC220V 50 60HZ Power Rating：1200W
Blade: 4Pcs， high-speed steel
Automatic Coaxial cable cutting stripping machine, Cable Stripping Machine, Coaxial Cable Stripping Machine, Stripping Machine

Automatic Coaxial cable cutting stripping machine, Cable Stripping Machine, Coaxial Cable Stripping Machine, Stripping Machine

applications of Automatic Coaxial cable cutting stripping machine, Cable Stripping Machine, Coaxial Cable Stripping Machine, Stripping Machine

Automatic Coaxial Cable Cutting and Stripping Machine WPM-9935

Model No: WPM-9935

Detailed description
