Working voltage AC220V±10%, 50HZ
Applicable tube size OD< 10mm, length less than 60mm(support customize)
Applicable wire size OD< 10mm, cable length longer than 195mm(support customize)
Heating method Ceramics heating panel
Heater power 1000W*2
Working efficiency 2000 pcs/h depends on tube material and cable
Temperature setting 0~600℃
Machine dimensions 1100mmX225mmX350mm
Machine weight 40kgs
First, product features:
1. It is a kind of energy-saving equipment for shrinking heat shrink tube to wire harness;
2. the equipment has the advantages of simple operation, low power consumption, convenience, energy saving, and high efficiency;
3. the use of up and down heating principle, the heat contraction tube effect is better; The shrinkage temperature is stable, which can protect the wire from damage, and the heat shrink tube is fully shrunk;
4. the product quality after heat shrinkage has a good consistency, to achieve a sealing effect;
5. a desktop type energy-saving equipment, exquisite appearance, simple, relatively small, high safety performance.

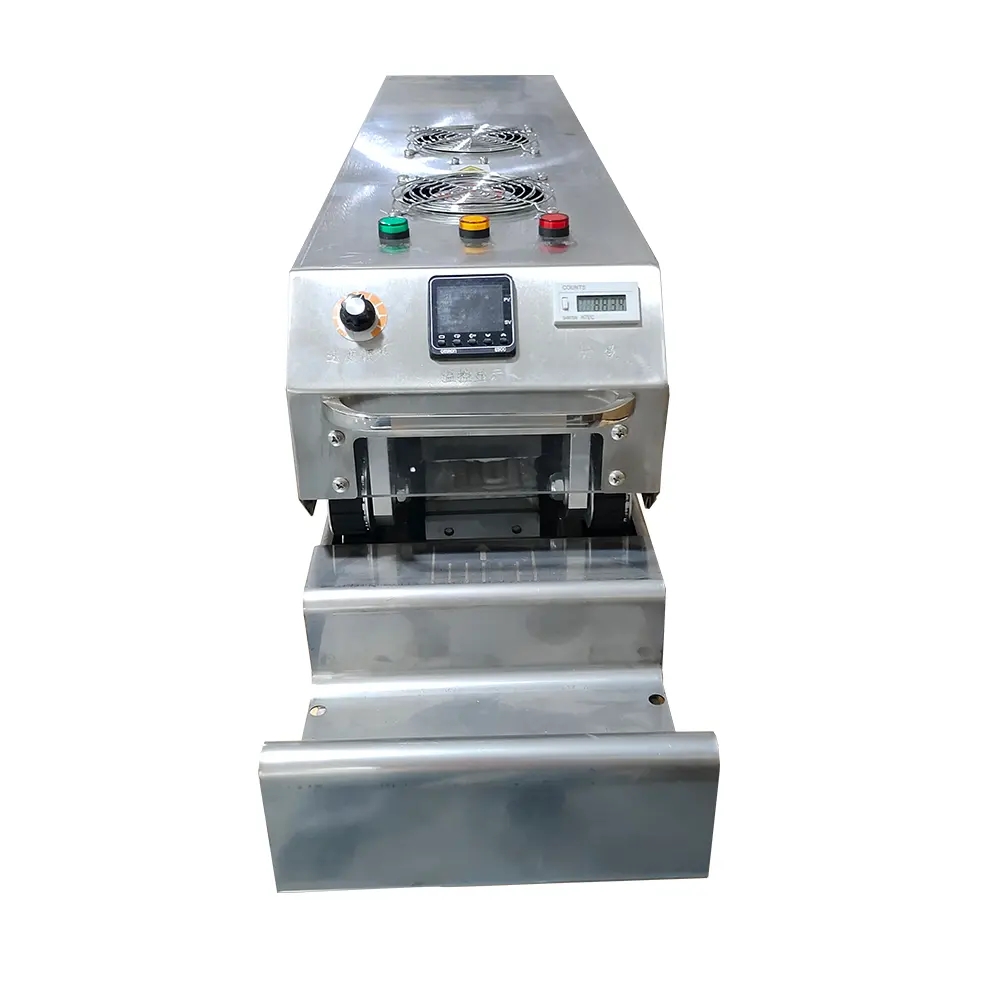

Model WPM-H550
Working voltage AC220V±10%, 50HZ
Applicable tube size OD< 10mm, length less than 60mm(support customize)
Applicable wire size OD< 10mm, cable length longer than 195mm(support customize)
Heating method Ceramics heating panel
Heater power 1000W*2
Working efficiency 2000 pcs/h depends on tube material and cable
Temperature setting 0~600℃
Machine dimensions 1100mmX225mmX350mm
Machine weight 40kgs
