Detailed description

Fully automatic PTFE tape winding machine electronic cable wire tape wrapping machine

Function:

No need for a dedicated master, the number of turns and winding speed can be set by intuitive operation.

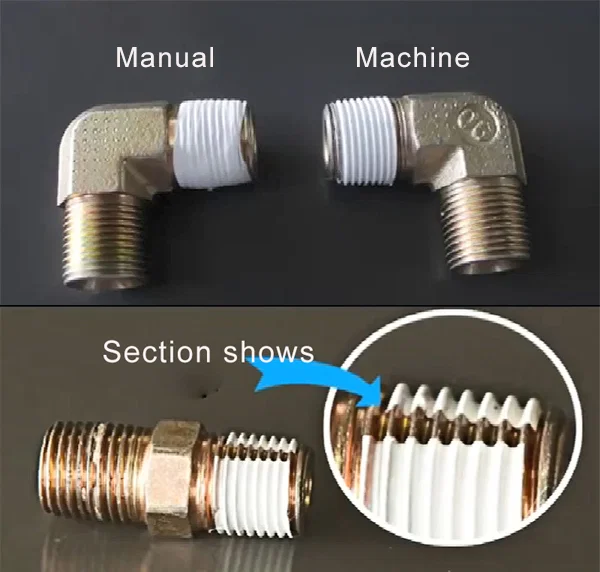

High efficiency and high quality, an average of 3 seconds to complete a complete process, the normal operation without any rework and loss, it is 5 times the efficiency of the traditional skilled manual operation,

raw material tape winding closely, not easy to fall off. Servo drive data is accurate, reliable, and stable

performance. 1 hour to produce 600-800 valves.

This machine is suitable for all raw tape wrapping equipment for all threaded joints, especially for raw tape ZG1/8-1 inch half-threaded joint

Specification:

1, P.T.F.E. tape wrapping and winding machine

2, Thread Seal Tape winding machine

3, Tape waterproof raw material tape wrapping machine

Model name	P.T.F.E. tape wrapping and winding machine
Applicable	Suitable for all raw tape wrapping equipment for all threaded joints, especially for raw tape ZG1/8-1 inch half-threaded joint
Pressure	0.6Mpa
Power	750W
Voltage	220V
Size	450*400*560mm
Weight	70kg
Working speed	3-5pieces/Second (wrap 2-3 circles)
Type	Electric and automatic
