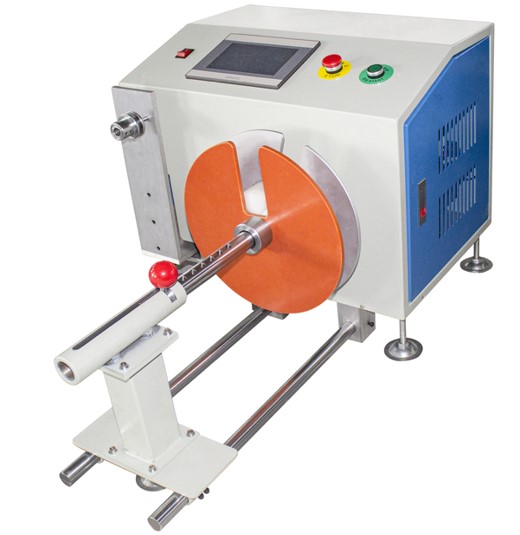

Automatic Arrangement Cable Winding Machine WPM-2024L
Automatic Arrangement Cable Winding Machine WPM-2024L
  • Automatic Arrangement Cable Winding Machine WPM-2024L

  • Model No: WPM-2024L
  • Automatic Arrangement Winding Machine WPM-2024L
    Winding inner diameter range: 50-200mm
    Number of coils: Adjustable
    Maximum disc diameter: 320mm
    Arrangement stroke: standard 120MM (optional 200MM)
    Input voltage: AC220V 50HZ/60HZ AC110V 50HZ/60HZ
    Special voltage can be customized
    Rated power <800W
    Load: 15kg
    Maximum machine size: 900*600*450(MM)
    Net weight: 60kg
    Gross weight: 65kg
  • Inquiry now
Detailed description

Automatic Arrangement Winding Machine WPM-2024L
Winding inner diameter range: 50-200mm
Number of coils: Adjustable
Maximum disc diameter: 320mm
Arrangement stroke: standard 120MM (optional 200MM)
Input voltage: AC220V 50HZ/60HZ AC110V 50HZ/60HZ
Special voltage can be customized
Rated power <800W
Load: 15kg
Maximum machine size: 900*600*450(MM)
Net weight: 60kg
Gross weight: 65kg

Main electrical parts
1. Winding mechanism: 750W servo motor drive + reducer set.
2. Control system: PLC+touch screen integrated machine.
3. Sliding guide rail: NSK from Japan.
4. Homemade rack and chassis.
5. 2 sets of relays, and one set of OMRON sensors.
6. One set of power supply system
7. Line mechanism adopts: step rack reciprocating line example

Processing fixture part
1. Important mounting plate adopts CNC computer gong numerical control machining center.
2, processing parts in strict accordance with the engineering design, milling machine, grinder, lathe, wire cutting, and heat treatment. Clamping and electrical installation and commissioning.
3. Wire harness (shaft) used: Sai steel material size according to the customer provide, the machine is only equipped with a winding axis
