Induction pneumatic wire stripping machine WPM-2018
Induction pneumatic wire stripping machine WPM-2018
  • Induction pneumatic wire stripping machine WPM-2018

  • Model No: WPM-2018

  • Induction pneumatic wire stripping machine (WPM-2018),Pneumatic Wire Stripping Machine, Multi-core Wire Cable Stripping Device, Multi-core Manual Wire Cable Stripper
    Weight:2.4kg
    Power supply:220VWeight:2.4kg
    Power supply:220V
    Processing time: 0.3 s
    Air pressure:0.5Pa-0.8Pa
    Stripping length: max 18 mm
    Applicable wires: PVC and Teflon wire, PUR, glass wire,1015,1017,, multicore sheath cable, double round core sheathing wire, rubber wire, etc.
    Size:0.03–3.0 mm²(32–12 AWG)
    Max wire diameter:3.2mm
    Max stripping length: 20mm Max stripping length: 20mm

  • Inquiry now
Detailed description

Induction pneumatic wire stripping machine (WPM-2018), Pneumatic Wire Stripping Machine, Multi-core Wire Cable Stripping Device, Multi-core Manual Wire Cable Stripper,  The main features of the machine have high accuracy, high efficiency, and fast return on investment. The compact design allows multiple processing units to be integrated into a workstation inside. And in the processing of the harness and multi-core cables, a compact design is also the most efficient way to process.

  ◆High precision, Economical & user-friendly
  ◆Extremely low maintenance
  ◆easy operation
  ◆No blade change is necessary

Model: WPM-2018
Outer dimensions: L265mm*W70mm*H135mm
Weight:2.4kg
Power supply:220V
Processing time:  0.3 s
Air pressure:0.5Pa-0.8Pa
Stripping length: max 18 mm
Applicable wires: PVC and Teflon wire, PUR, glass wire,1015,1017, multicore sheath cable, double round core sheathing wire, rubber wire, etc.
Size:0.03–3.0 mm²(32–12 AWG)
Max wire diameter:3.2mm
Max stripping length: 20mm

The precision of the Diameter setting:0.01mm
Stripping accuracy: Full strip:0.5mm, Part strip:2mm

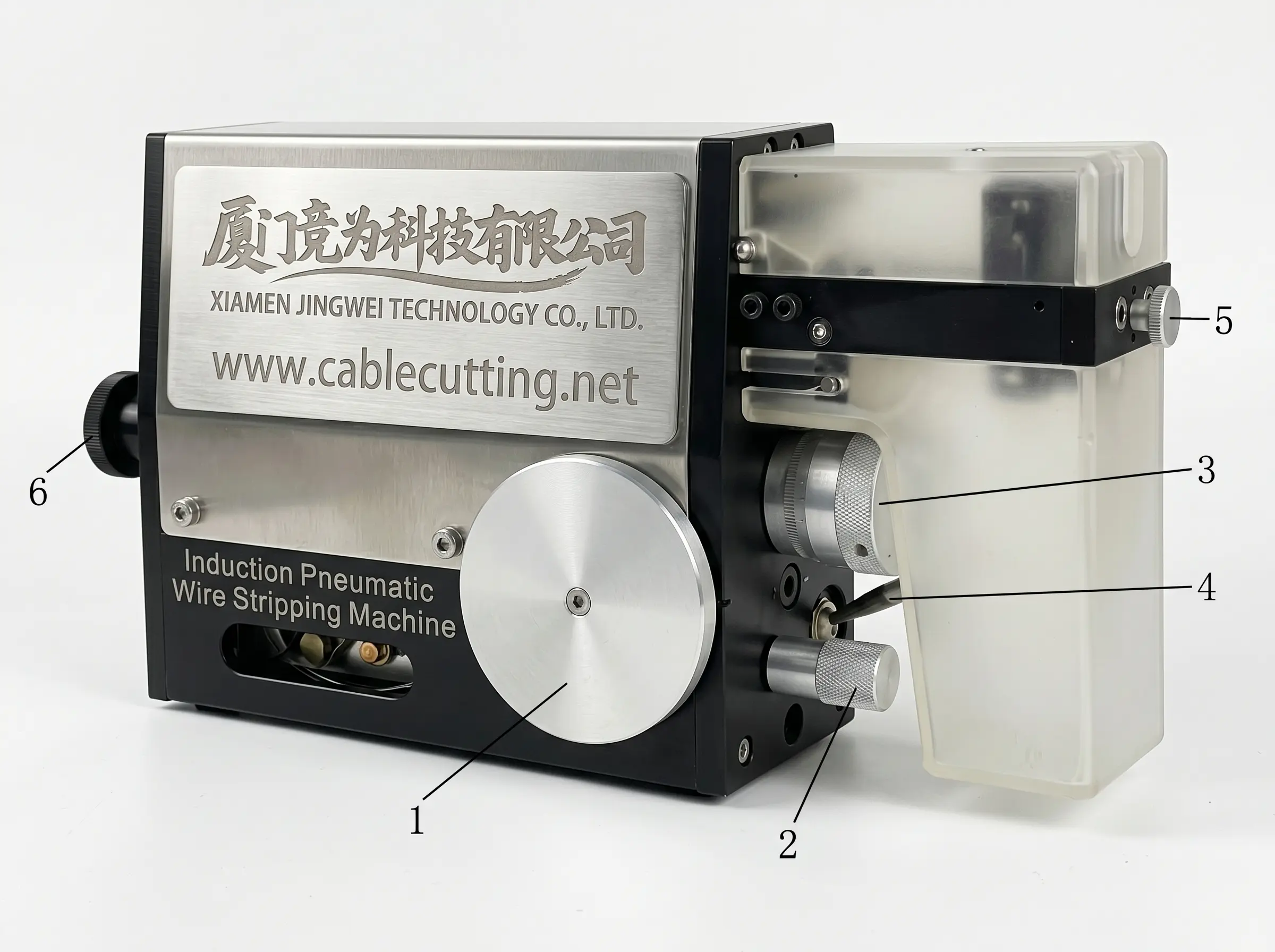

samply display of Pneumatic Wire Stripping Machine, Multi-core Wire Cable Stripping Device, Multi-core Manual Wire Cable Stripper
